Inconel 825 is a nickel-iron-chromium alloy with additions of copper, molybdenum and titanium. The alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. The nickel content is sufficient for resistance to chloride-ion stress corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives outstanding resistance to reducing environments such as those containing sulfuric and phosphoric acids. the molybdenum also aids resistance to pitting and crevice corrosion. The alloy’s chromium content confers resistance to a variety of oxidizing substances such as nitrates, nitric acid and oxidizing salts. The titanium addition serves, with an appropriate heat treatment, to stabilize the alloy against sensitization to intergranular corrosion. The resistance of Incoloy® 825 to general and localized corrosion under diverse conditions gives the alloy broad usefulness. Applications include chemical processing, pollution control, oil and gas recovery, acid production, pickling operations, nuclear fuel reprocessing and handling of radioactive wastes.
Incoloy 825® is a nickel-iron- chromium alloy with titanium, copper, and molybdenum. Incoloy ® 825’s chemical composition provides great resistance to many corrosive environments, such as pitting, crevice corrosion, intergranular corrosion, and stress- corrosion cracking. Incoloy 825® has good mechanical properties from moderately to high temperatures. The hot- working range for Incoloy 825® is 1600 to 2150º F. The material has good weldability by all conventional processes.

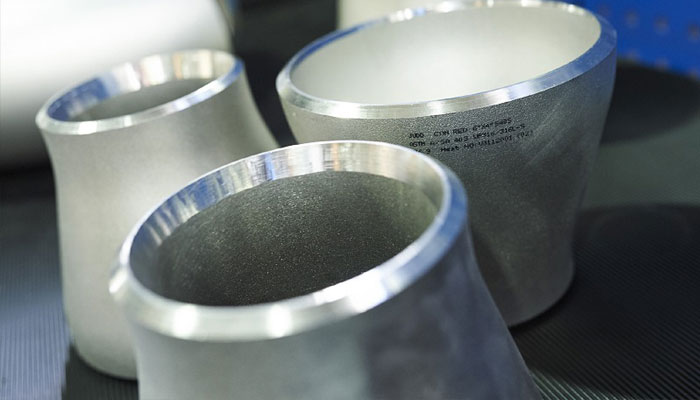

Available forms are Inconel alloy 825 Seamless Pipe, Inconel alloy 825 Welded Pipe ,Inconel alloy 825 seamless tube,Inconel alloy 825 Welded Tube,Inconel alloy 825 Round Bars,Inconel alloy 825 wire,Inconel alloy 825 Sheet,Inconel alloy 825 Plate,Inconel alloy 825 Forgings,Inconel alloy 825 Pipe Fittings and ,Inconel alloy
|0.05 max||1.0 max||.03 max||0.5 max||19.5 – 23.5||38.0 – 46.0||2.5 – 3.5||1.5 – 3.0||0.6 1.2||0.2 max||22.0 min||3.15 4.15|
|Sheet / Plate||ASME SB-424|
|Round Bar||ASME SB-425|
|Pipe||ASME SB-423 / ASME SB-829 / ASME SB-705 / ASME SB-775|
|Tube||ASME SB-163 / ASME SB-704 / ASME SB-751|
